iMDC
CPU
32bit(ARM Coretex A8) Microprocessor
OS
Embedded Linux
| Memory | 512MByte Flash / 256MByte DDR2 SDRAM |
|---|---|
| ID User / Event Buffer | 200,000 Users / 400,000 Events |
| Temper Switch Input Port | 1 EA |
| Reader Port / Inputs / Outputs |
16 iMDC-RIM : 2 / 8 / 8 (up to 32 / 128 / 128) |
| Interfaces | Ethernet / RS485 |
| Power / Current | DC 12V / Max. 500mA |
| Certification | FCC, CE, KC, RoHS, UL |
iEDC
CPU
32bit(ARM Coretex A8) Microprocessor
OS
Embedded Linux
| Memory | 512MByte Flash / 256MByte DDR2 SDRAM |
|---|---|
| ID User / Event Buffer | 100,000 Users / 400,000 Events |
| Temper Switch Input Port | 1 EA |
| Reader Port / Inputs / Outputs | 8 / 16 / 16 |
| Interfaces | Ethernet / RS485 / RS232 |
| Power / Current | DC 12V / Max. 800mA |
| Certification | FCC, CE, KC, RoHS, UL |
iFDC
CPU
32bit(ARM Coretex A8) Microprocessor
OS
Embedded Linux
| Memory | 512MByte Flash / 256MByte DDR2 SDRAM |
|---|---|
| ID User / Event Buffer | 100,000 Users / 400,000 Events |
| Temper Switch Input Port | 1 EA |
| Reader Port / Inputs / Outputs | 4 / 8 / 8 |
| Interfaces | Ethernet / RS485 / RS232 |
| Power / Current | DC 12V / Max. 800mA |
| Certification | FCC, CE, KC, RoHS, UL |

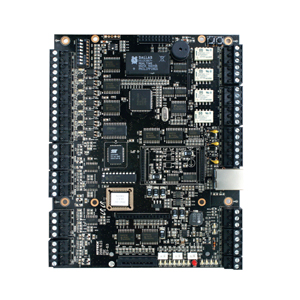

iTDC
CPU
8bit Microprocessor
| Memory | 512KByte Flash / 64KByte ROM |
|---|---|
| ID User / Event Buffer | 50,000 Users / 29,500 Events |
| Temper Switch Input Port | X |
| Reader Port / Inputs / Outputs | 4 / 7 / 4 |
| Interfaces | Ethernet / RS485 / RS232 |
| Power / Current | DC 12V / Max. 500mA |
| Certification | FCC, CE, KC, RoHS, UL |
