LX505(SR)
Controller CPU
Dual 8bit and 16bit microprocessor
Memory
256KByte ROM + 512KByte Flash
| ID User / Fingerprint User | 20,000 / X | 20,000 / 5,000 |
|---|---|---|
| Event Buffer | 20,000 | |
| Radio Frequency(RF) | 125KHz or 13.56Mhz | |
| Interfaces | TCP/IP, RS232, RS485, Wiegand | |
| Input / Output | 4EA / 4EA | |
| Keypad | 24 Key Numeric Keypad | |
| Temper | ◯ | |
| Power / Current | DC 12V / Max. 500mA | |
| Certification | FCC, CE, KCC, RoHS | |
Finger007(SR)
Controller CPU
Dual 8bit and 16bit microprocessor
Memory
256KByte ROM + 512KByte Flash
| ID User / Fingerprint User | 20,000 / X | 20,000 / 5,000 |
|---|---|---|
| Event Buffer | 20,000 | |
| Radio Frequency(RF) | 125KHz or 13.56Mhz | |
| Interfaces | TCP/IP, RS232, RS485, Wiegand | |
| Input / Output | 4EA / 4EA | |
| Keypad | 24 Key Numeric Keypad | |
| Temper | ◯ | |
| Power / Current | DC 12V / Max. 500mA | |
| Certification | FCC, CE, KCC, RoHS | |

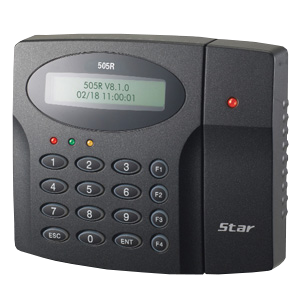

(SR)505R
Controller CPU
Dual 8bit and 32bit ARM9
Memory
128KByte Flash + 1MByte Flash
| ID User / Fingerprint User | 50,000 / X | 50,000 / 5,000 |
|---|---|---|
| Event Buffer | 50,000 | |
| Radio Frequency(RF) | 125KHz or 13.56Mhz | |
| Interfaces | TCP/IP, RS232, RS485, Wiegand | |
| Input / Output | 4EA / 4EA | |
| Keypad | 16 Key Numeric Keypad | |
| Temper | ◯ | |
| Power / Current | DC 12V / Max. 300mA | |
| Certification | FCC, CE, KCC, RoHS | |

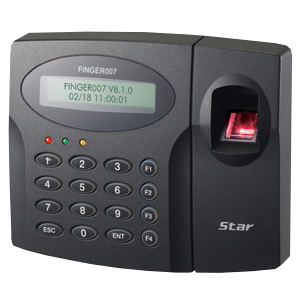

Finger007(SR)
Controller CPU
Dual 8bit and 32bit ARM9
Memory
128KByte Flash + 1MByte Flash
| ID User / Fingerprint User | 50,000 / X | 50,000 / 5,000 |
|---|---|---|
| Event Buffer | 50,000 | |
| Radio Frequency(RF) | 125KHz or 13.56Mhz | |
| Interfaces | TCP/IP, RS232, RS485, Wiegand | |
| Input / Output | 4EA / 4EA | |
| Keypad | 16 Key Numeric Keypad | |
| Temper | ◯ | |
| Power / Current | DC 12V / Max. 300mA | |
| Certification | FCC, CE, KCC, RoHS | |
